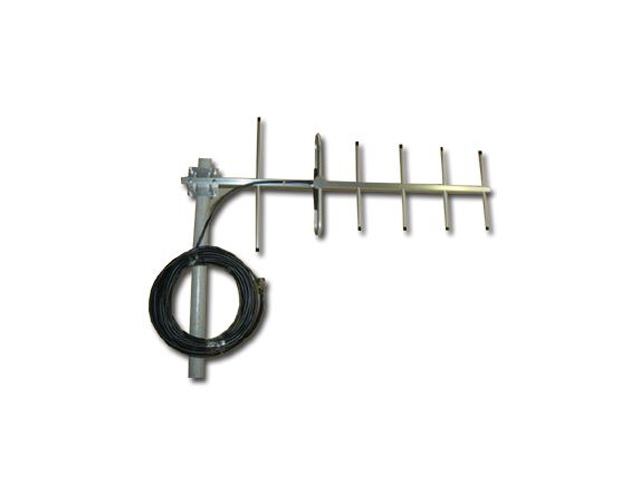

LPDA Dual antenna Vertical 470-862MHz UHF YAGI Antenna
Product model BBT-0408YI10V14
Frequency Range 470-862MHz
Polarization Type Vertical
Gain 10dBi
VSWR ≤2
Dimensions H*W*D (mm) 1040*345*40（mm）
★470-862MHz wireless access system
★Digital Television access system
★wireless communication system
Features：
★High gain,low VSWR,stable performance
★With a firm aluminum structure,Environmental adaptability.
Download
Specifications:
Electrical | |
Model Number | BBT-0408YI10V14 |
Frequency Range | 470-862MHz |
Polarization Type | Vertical |
Gain | 10dBi |
3dB Beam-Width. H-Plan | 45° |
3dB Beam-Width. E-Plan | 40° |
VSWR | ≤2 |
Front to Back Ratio(dB) | ≥10dB |
Input Impedance | 75Ω |
Max Input Power. | 50W |
Lightning Protection | DC Grounded |
Mechanical | |
Connector Type | F-Type Female |
Dimensions H*W*D (mm) | 1040*345*40（mm） |
Radome Material l | Aluminum |
Radome color | silvery |
Operating Temperature Rang | -40ºC/+60ºC |
Support Pole Diameter | φ30-φ60(mm) |
Rated Wind Velocity | 60m/s |
