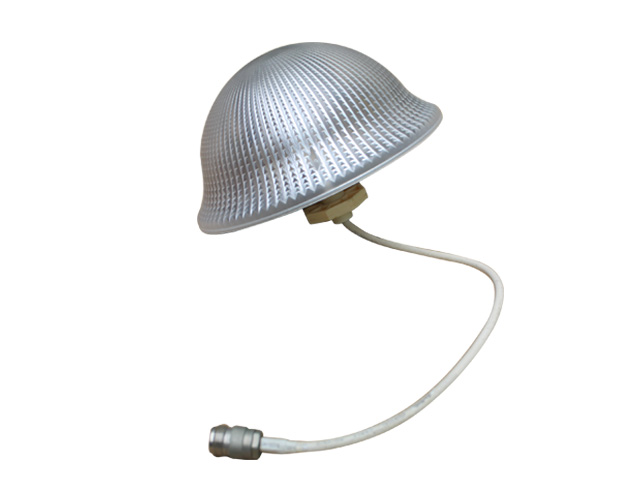

Vertical 698-2700MHz 2.15-4dBi Ceiling ANTENNA
Product model BBT-0627CL0204V-127
Frequency Range 698-960MHZ / 1710-2700MHZ
Polarization Type Vertical
Gain 2.15dBi / 4dBi
VSWR ≤1.7
Dimensions H*W*D (mm) Φ127*144(mm)
Application:
★For indoor distributed wireless coverage system（For indoor DAS）
★Support GSM、CDMA、4G-LTE Wireless system
Features：
★Wide bandwidth,Low VSWR, stable performance,Omnidirectional
★Small size, attractive appearance
★Regular ceiling installation, use conveniently
Download
Specifications:
Electrical | ||
Model Number | BBT-0627CL0204V-127 | |
Frequency Range | 698-960MHZ | 1710-2700MHZ |
Polarization Type | Vertical | |
Gain | 2.15dBi | 4dBi |
3dB Beam-Width. H-Plan | 360° | 360° |
3dB Beam-Width. E-Plan | 80° | 60° |
VSWR | ≤1.7 | |
Input Impedance | 50Ω | |
Max Input Power. | 50W | |
Lightning Protection | DC Grounded | |
Mechanical | ||
Connector Type | N-Type Female | |
Cable | SYV-50-5 | |
Cable length | 30cm | |
Dimensions H*W*D (mm) | Φ127*144(mm) | |
Radome Material | ABS | |
Radome color | White | |
Operating Temperature Rang | -40ºC/+60ºC | |
Rated Wind Velocity | 60m/s | |
