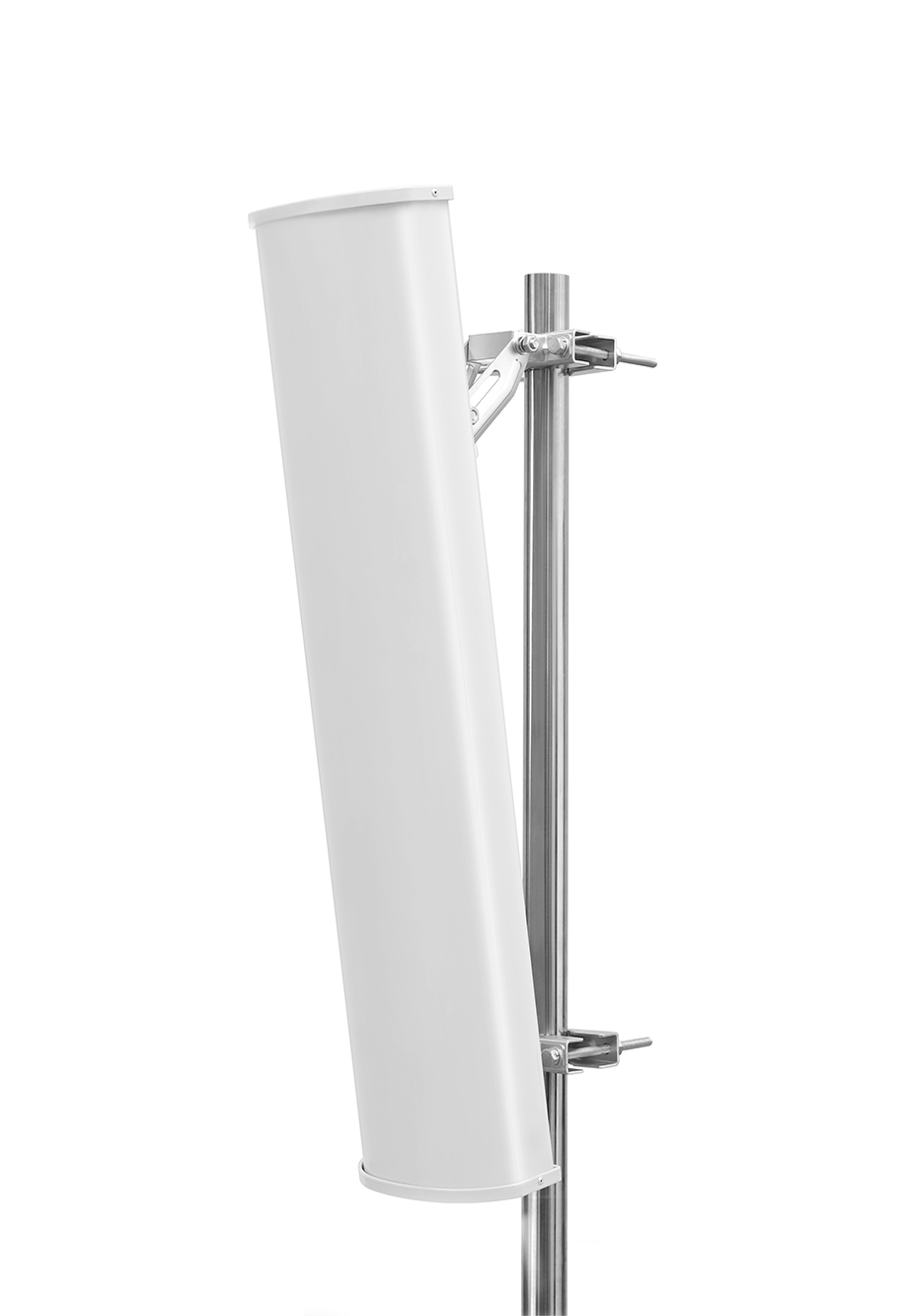

WiFI6 WISP antenna signal coverage Sector Antenna
Product model BBT-5971PA17D065-N2
Frequency Range 5925-7125MHz
Polarization Type ±45°
Gain 17dBi
VSWR ≤2.0
Dimensions H*W*D (mm) 660*180*80（mm）
★WLAN、WIFI wireless system
★point-to-multipoint coverage transmission system
★High gain, low VSWR
Download
Specifications:
Electrical | |
Part Number | BBT-5971PA17D065-N2 |
Frequency Range | 5925-7125MHz |
Polarization Type | ±45° |
Gain | 17dBi |
3dB Beam-Width. H-Plan | 65° |
3dB Beam-Width. E-Plan | 8° |
VSWR | ≤2.0 |
Front to Back Ratio(dB) | ≥25 |
Port to Port lsolation | ≥20 |
Tilt(°) | 4° |
Input Impedance | 50Ω |
Max Input Power. | 100W |
Lightning Protection | DC Grounded |
Mechanical | |
Connector Type | 2*N-Type Female |
Dimensions H*W*D (mm) | 660*180*80（mm） |
Weight | 3.5kg |
Radome Material | PVC |
Radome color | Gray |
Operating Temperature Rang | -40ºC/+60ºC |
Support Pole Diameter | φ30-φ60(mm) |
Rated Wind Velocity | 60m/s |
