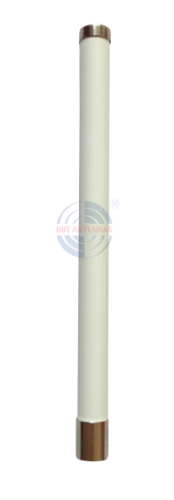

WISP WIFI6 WLAN Omni 2.5G-5.8G fibreglass Antenna
Product model BBT-2458FG0608V
Frequency Range 2400-5850Mhz
Polarization Type Vertical
Gain 6dBi / 8dBi
VSWR ≤1.7
Dimensions H*W*D (mm) Φ20*280（mm）
Application:
★2.4G/5.8G fixed wireless access transmission system.
★Point-to-Multipoint coverage system
★WLAN、WiFi6 application system
Download
Features：
★Adopt Broadband design,high gain, stable performance
★Strong anti-interference capability
★All weather operations outside
Specifications:
Electrical | ||
Part Number | BBT-2458FG0608V | |
Frequency Range | 2400-2500MHz | 5150-5850MHz |
Polarization Type | Vertical | |
Gain | 6dBi | 8dBi |
3dB Beam-Width. H-Plan | 360° | 360° |
3dB Beam-Width. E-Plan | 25° | 16° |
VSWR | ≤1.7 | |
Input Impedance | 50Ω | |
Max Input Power. | 20W | |
Lightning Protection | DC Grounded | |
Mechanical | ||
Connector Type | N-Type Male | |
Dimensions H*W*D (mm) | Φ20*280（mm） | |
Radome Material | Fiberglass | |
Radome color | white | |
Operating Temperature Rang | -40ºC/+60ºC | |
Support Pole Diameter | φ30-φ60(mm) | |
Rated Wind Velocity | 60m/s | |

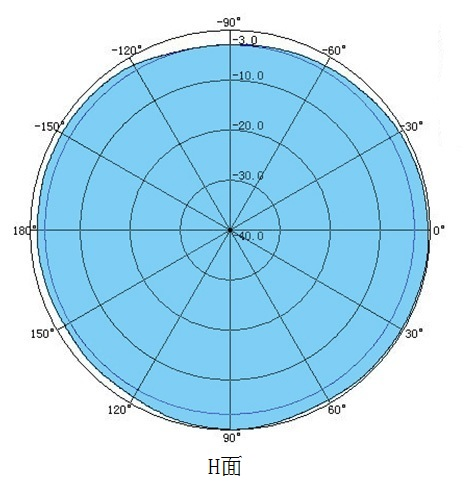

Radiation Pattern:
2400-2500MHz
5150-5850MHz
